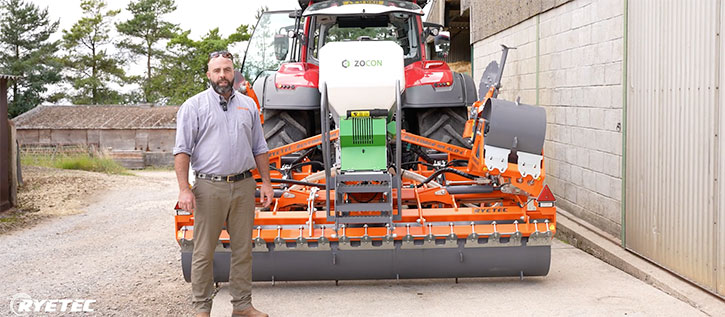

Filmed at Ryetec HQ, the walkthrough begins with a look at the Zocon Isobus Seeder mounted to the Ryetec RESTORER ALD-E Subsoiler. Jordon introduces the setup, pointing out Ryetec’s custom-designed fold-out access steps, which make it easy to reach the hopper for filling.

The video focuses on achieving precise calibration for the seed type being used. In this case, the team selects the blue seed roller, ideal for medium-sized seeds at moderate application rates. Jordon explains that each Zocon seeder includes multiple roller options to accommodate different seed sizes and rates, smaller grooves for fine seeds and larger grooves for higher-volume crops. Changing rollers is quick and simple, using two turnbuckles and a bearing assembly that slides out from the side of the machine.

Nearby is the integrated calibration hopper, which locks securely into place during operation and transport. The hopper slides out when needed, allowing operators to perform calibration checks safely and easily in the field. A feed roller adjustment guide is also located on this side of the unit, with clear settings for smaller or larger seed types.

To make calibration straightforward for solo operators, the Zocon seeder includes a calibration button that initiates either a 30-second or 60-second test cycle, depending on the number of presses. Before beginning, Jordon demonstrates how to remove the outlet plate to let seed drop into the calibration hopper. The plate is designed with a simple channel and clip system so it can be removed and reinstalled quickly without losing parts in the field.

With the hopper in place, Jordon moves into the tractor cab to access the Isobus user terminal, where the seeder’s job parameters are managed. From the home screen, he opens the calibration menu via the settings icon and starts the calibration cycle. The seed roller runs automatically for 30 seconds, filling the hopper with a measured sample of seed.

After the run, Jordon weighs the collected seed using a calibrated scale, in this example, 712 grams, and enters that figure back into the Isobus terminal. The system instantly calculates and confirms calibration success.

With calibration complete, Jordon demonstrates how to set a target application rate using the seeder’s “Desired Rate” field. In this session, the target is set to 3.7 kilograms per hectare, with the system automatically calculating an operating speed range between 1.8 and 8.6 km/h for accurate coverage.

Before heading into the field, Jordon reminds viewers to replace the outlet plate into its working position to ensure proper seed delivery. Once complete, the system is ready to operate, accurately distributing seed while working in tandem with the RESTORER ALD-E Subsoiler for an efficient one-pass establishment process.

This method not only saves time but ensures uniform seed depth and coverage, helping contractors and farmers achieve consistent results across varied soil conditions.
