Klaw Timber Firewood Handling Forestry Loading Grapple For Loaders And Telehandlers
Klaw Timber Firewood Handling Forestry Loading Grapple For Loaders And Telehandlers
The Grapple and K.T.S Klaw are high capacity timber handling attachments designed for agricultural loaders, telehandlers, tractors and forklifts. These forestry grabs allow efficient handling of timber using standard loaders, removing the requirement to invest in more expensive specialist timber handling cranes.
Both attachments are built for strength, durability and practical daily timber handling, whether extracting felled timber, loading trailers or feeding processors.
Overview:
- High capacity timber grab for agricultural loaders, telehandlers, tractors and forklifts.
- Allows efficient handling of timber with standard loaders without investing in specialist timber handling cranes.
- Compatible with standard “euro” hitches and adaptable to most loader types using bolt-on bracket systems.
- Bolt-on three point linkage available for mounting to the rear of most agricultural tractors.
- Manufactured using high tensile steel for maximum strength and minimum weight.
- Designed for extraction, stacking, trailer loading and feeding timber processors.
Product Images
.JPG)
.JPG)
Main features
- Heavy duty 3 ton rated rotator on Grapple model.
- Metre long arm for improved reach and placement control.
- High tensile steel construction for strength with controlled weight.
- Rear stabilising teeth for lengthwise log transport without swinging.
- Maximum 3.0 ton load capacity on Klaw.
- Lightweight Klaw design at 185 kg.
- Protected hydraulic cylinder on Klaw.
- Wide opening jaws for brushwood and large timber.
- Electro valve option available for simplified hydraulic control on Grapple.
Product Specification
The Grapple

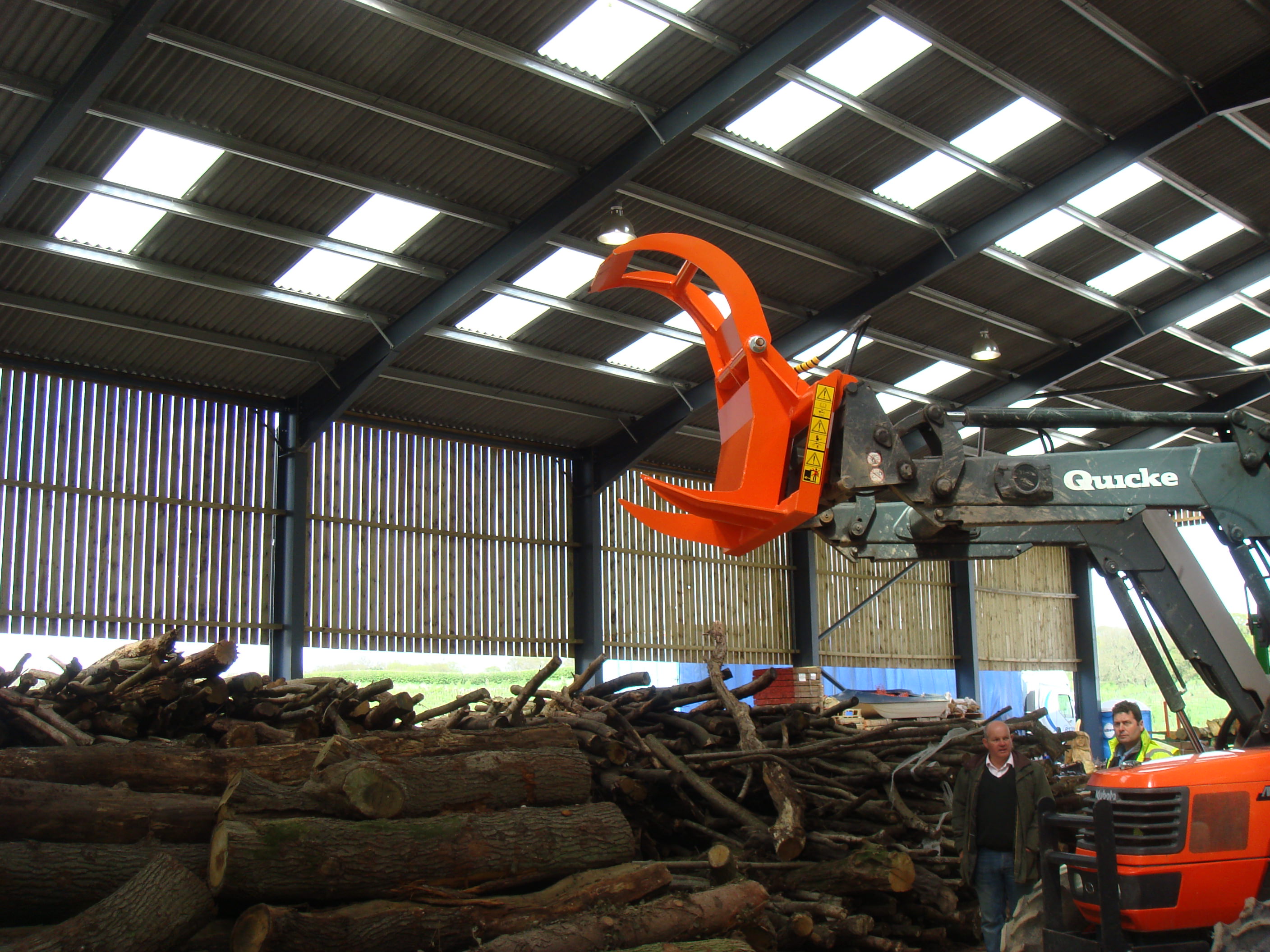

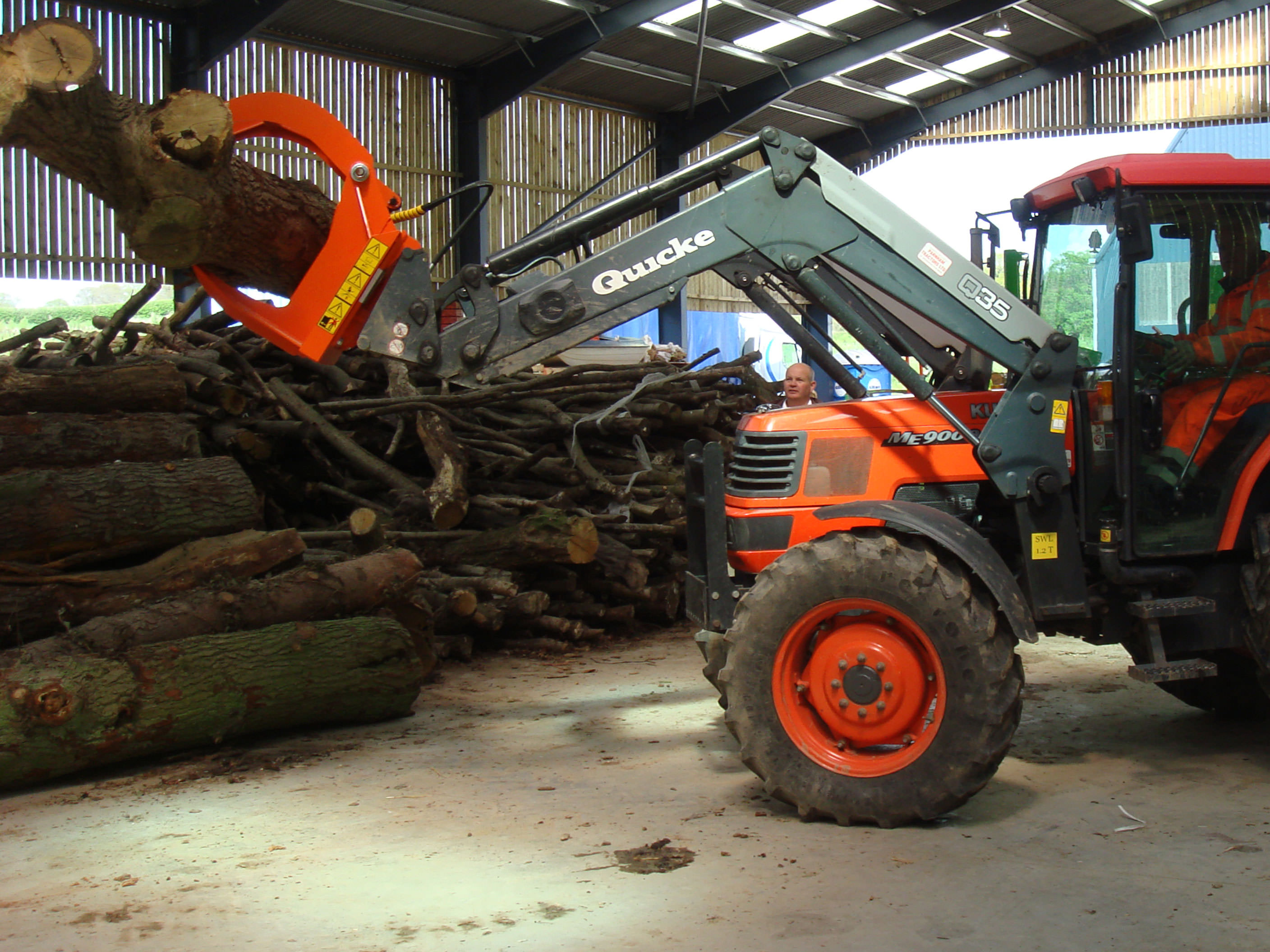

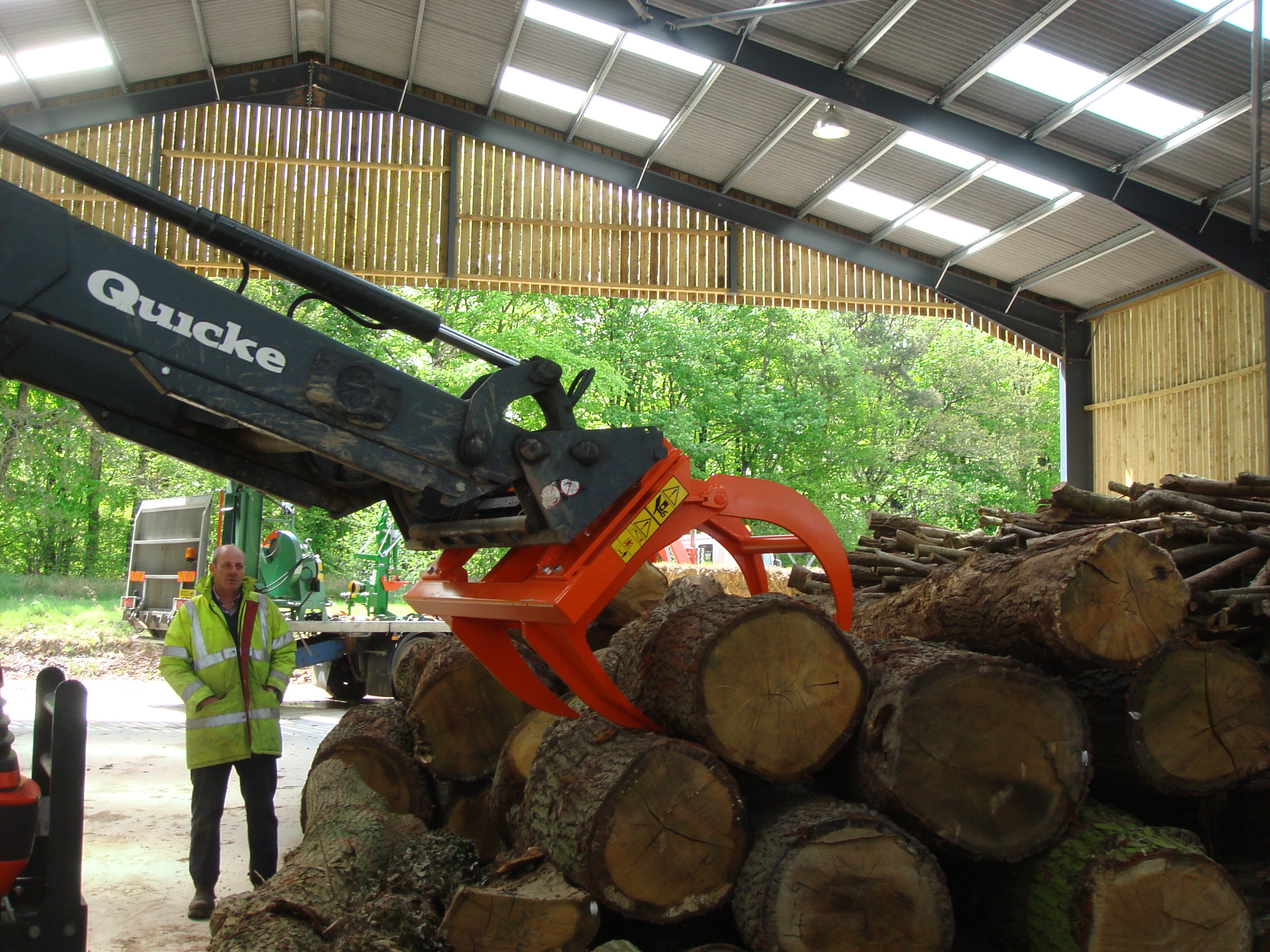

The loading Grapple combines a heavy duty 3 ton rated 360 degree rotator with a powerful forestry timber grab mounted on a metre long arm.
This allows loaders to easily pick up felled timber and place it accurately onto trailers, firewood processors or for extraction and stacking.
Teeth on the rear of the frame allow logs to be carried lengthways without swinging.
The Grapple requires two double acting hydraulic services.
It can also be supplied with an electro valve to switch a single hydraulic service to operate either the grapple or the rotator in turn, ideal for use on front loaders.
The K.T.S Klaw

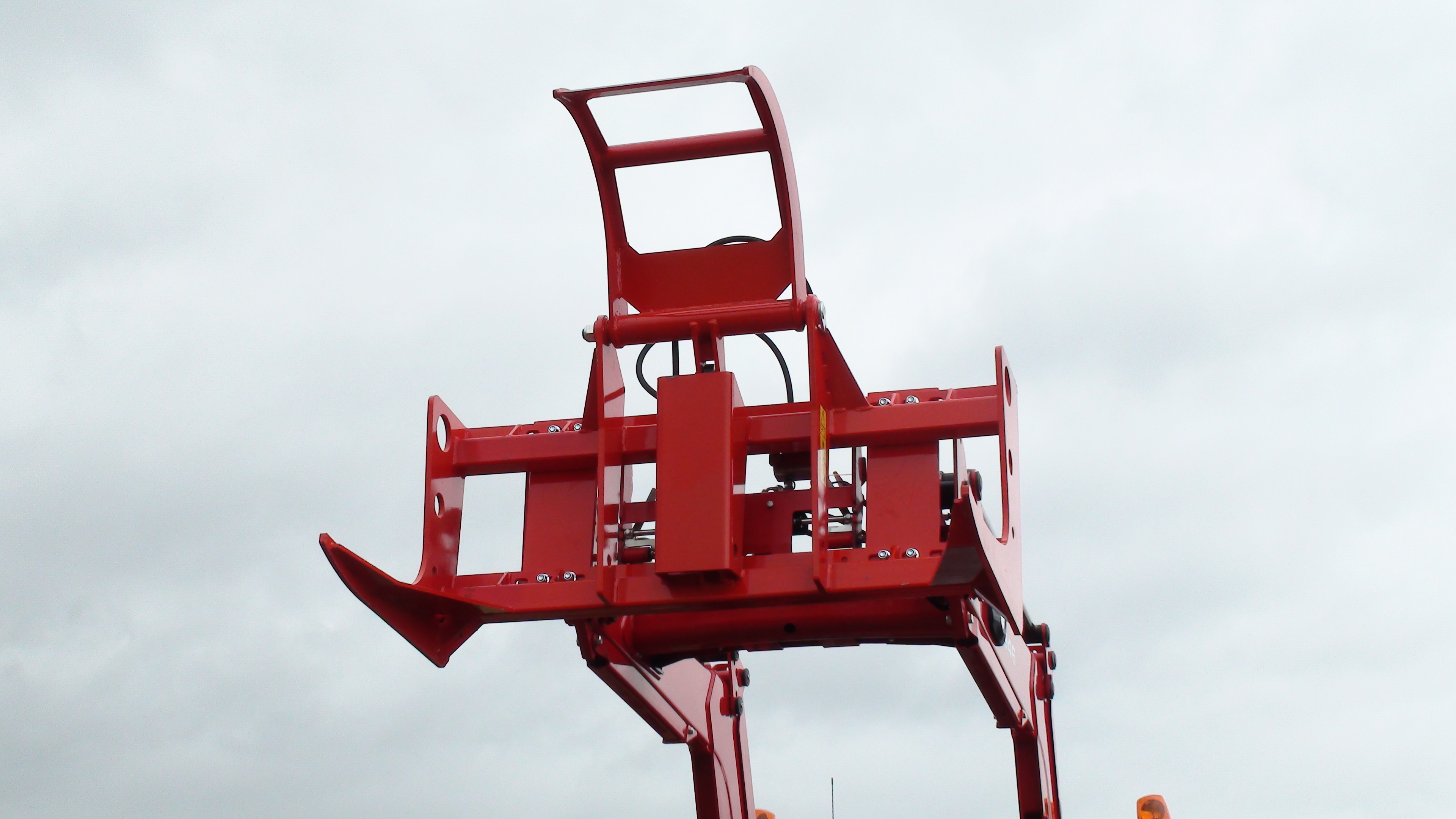

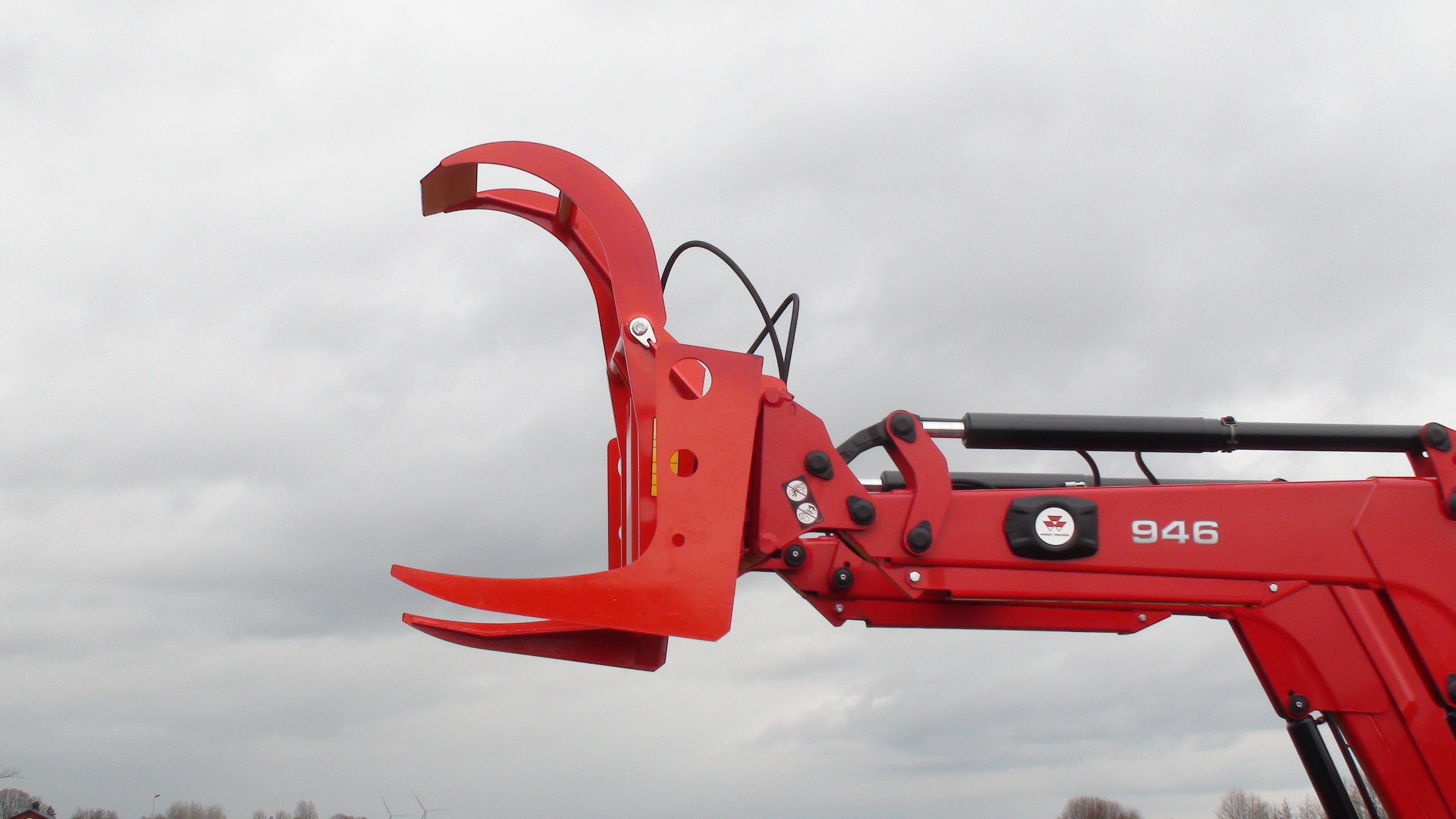

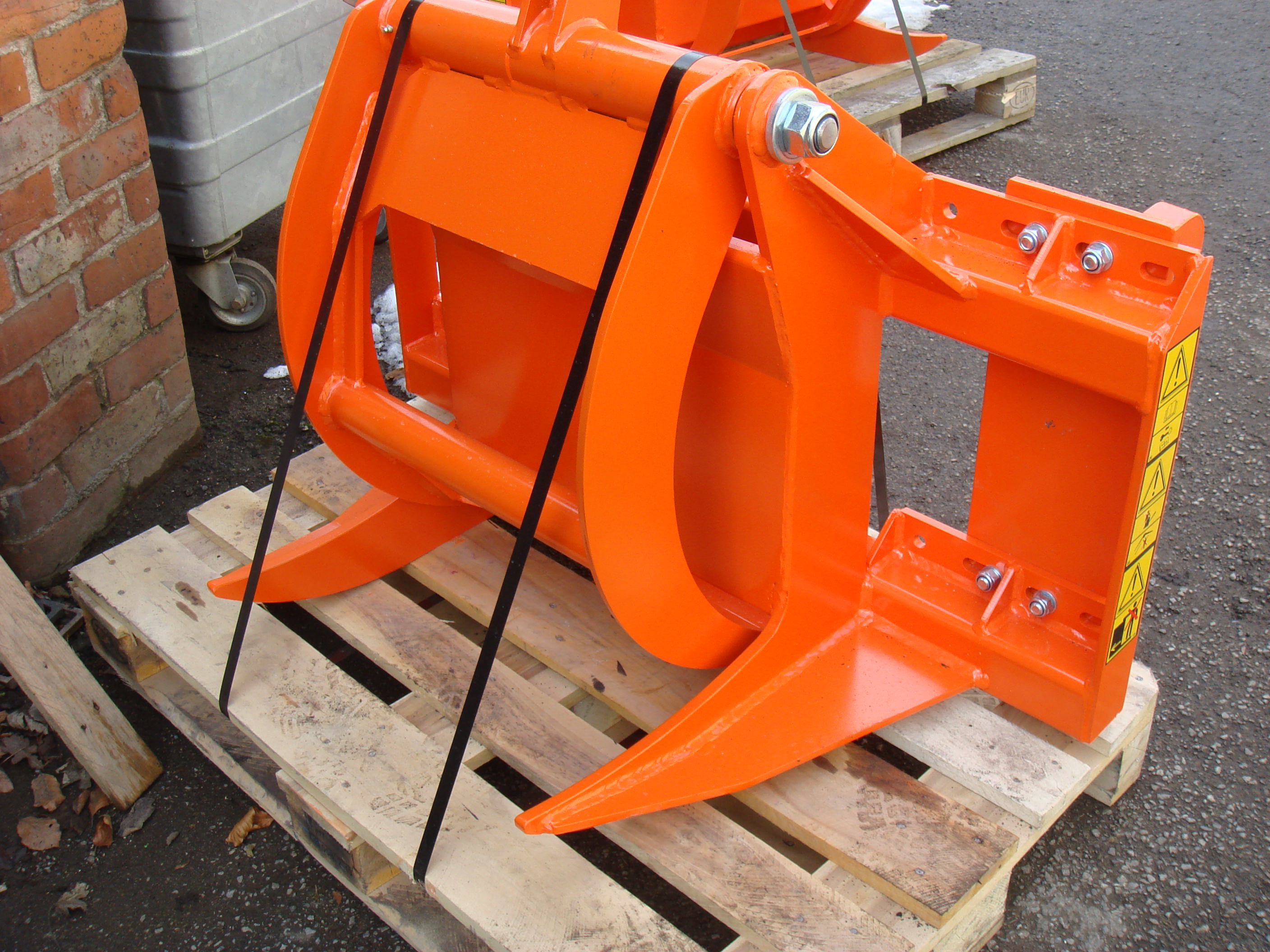

The K.T.S Klaw is a powerful and sustainable timber handling tool made for a maximum load of 3.0 tons.
The Klaw weighs 185 kg and is suitable for tractors, smaller loaders and telescopic loaders.
It is built on a substantial torsion resistant frame that is strong enough to withstand heavy loads, yet flexible enough not to break during hard work.
The Klaw opens widely to make loading of timber and brushwood easier.
The hydraulic cylinder is protected behind a plate to reduce the risk of damage and costly repairs.
The Klaw closes tightly to grasp thin wood securely.
Pointed conical tips penetrate timber effectively.
The bent upper jaw holds timber firmly during transportation.
Applications
Forestry operations
Loading and unloading felled timber in woodland environments.
Agricultural use
Handling firewood, clearing felled trees and managing timber on farms.
Firewood processing
Feeding sawmills and wood processors efficiently.
General material handling
Moving long poles, heavy pipes and round bales.
Do you have any further questions?
Do you have any questions regarding this model or any of our other used machinery stock? Please give a call using the number below or email us.
Please contact us to check the machine location before travelling.
-
