Zocon Tipping Trailers
Zocon Tipping Trailers
Overview:
- Indispensable for farmers, gardeners and land companies, and any situation where material displacement happens.
- Durable, fully galvanised frame for corrosion resistance and long service life.
- Modular approach with multiple types, options and expansions available.
- All trailers are equipped with a brake system, overrun brake, hydraulic brakes, or air brakes.
- Self-closing tailgate to increase ease of use.
- COC checked before sale, supporting licence plate access on European roads.
- Available variations include Z030, Z045, Z050, Z080 and Z100.
- Maximum loading capacity is the model number multiplied by 100, for example Z030 equals maximum 3000 kg.

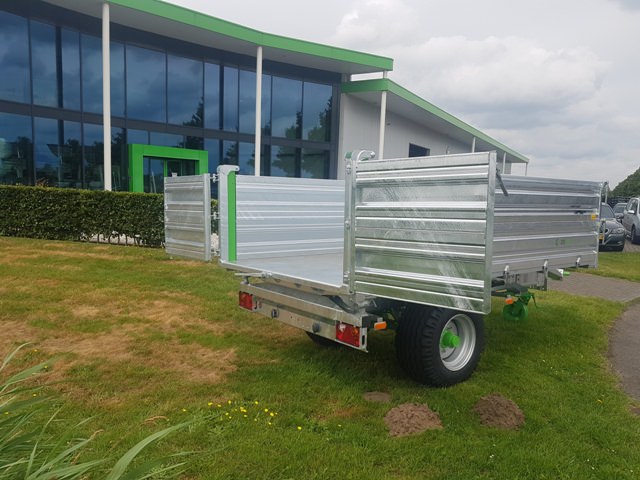

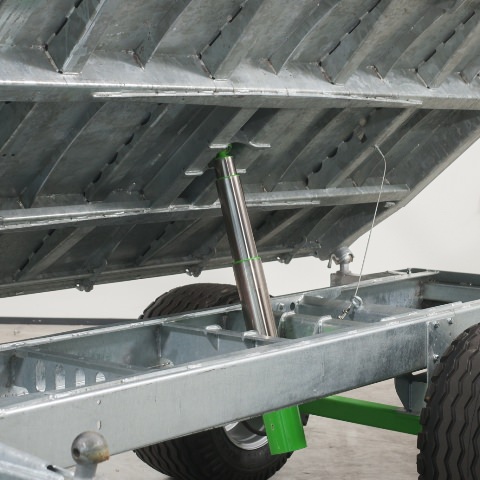

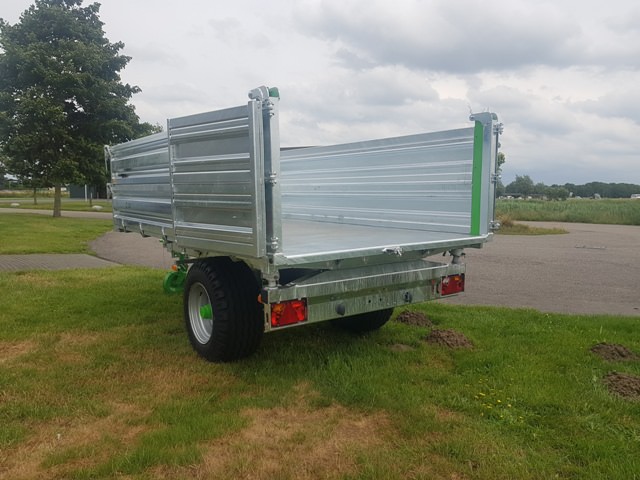

Product Images
Main features

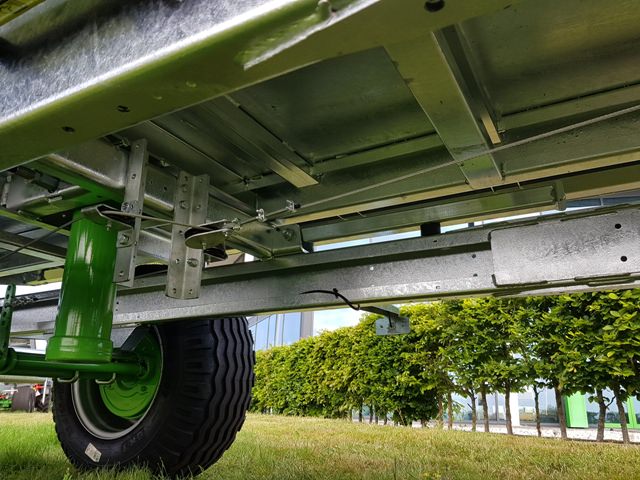

Durable galvanised frame:
The complete frame is galvanised for a long, corrosion-resistant future, supporting demanding agricultural use.
Braking options to match tractor setup:

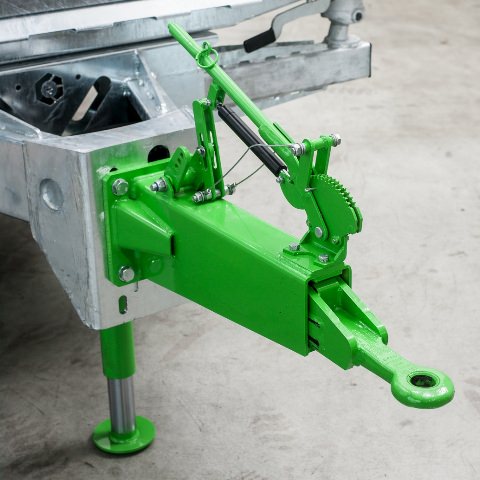

Overrun brake, braking of the tractor results in gradual braking of the trailer via brake cables.
Air brakes, suitable for tractors with air supply.
Hydraulic brakes, suitable for tractors with hydraulic supply.
Z080 and Z100 exclude overrun brake.

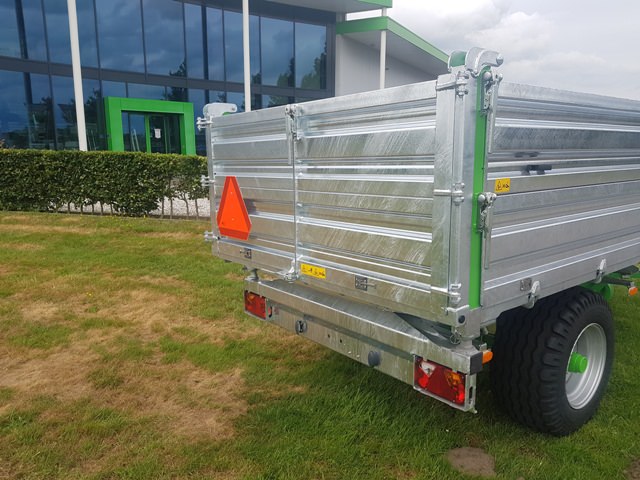

Self-closing tailgate:
The tailgate is self-closing, increasing ease of use during tipping and unloading.
COC checked for European road use:
Before sale, the trailers are COC checked, and ZOCON is certified for this, supporting access to the European road network and licence plate registration.
Optional accessories and upgrades:
Threeway tipping, allows sideways tipping as well as rear tipping, Z045 excluded.
Extensions (400 mm), increases volume, suitable for larger loads.

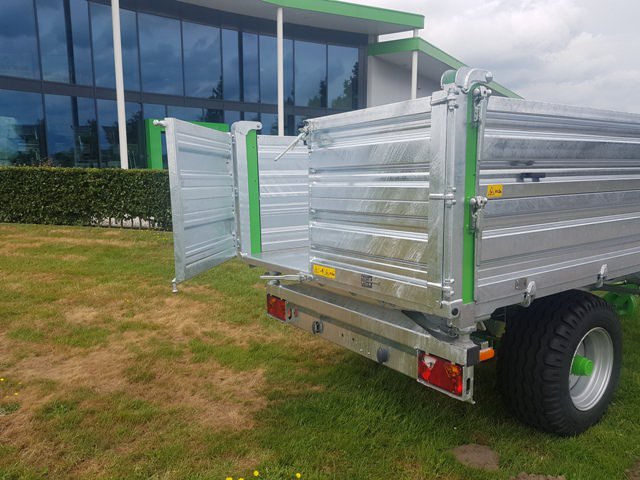

2-doors tailgate, double doors within the standard rear board, can be combined with extensions.
Netting extensions (800 mm), increases volume, suitable for larger loads.
Toolbox (30.5 L), practical mounted toolbox for small tools and lashing straps.
Shreds cover, hood with opening placed towards front or rear, suitable for collecting shreds.
Tandem axle, Z080 and Z100 available with double axle as an alternative to single axle.
LED lighting, replaces standard lighting for more durable and economical use.
Hydraulic leg support, alternative to support wheel, standard equipped on Z080 and Z100.
Product Specification
Variations: Z030, Z045, Z050, Z080 and Z100
Note, Z080 and Z100 excluded of overrun brake.
Z030
Max weight, 3,950 kg
Dimensions box, 240 x 150 x 40 cm
Standard tyres, 10.0/75 x 15.3
Tipping angle, 52 degrees
Z045
Max weight, 5,800 kg
Dimensions box, 340 x 180 x 40 cm
Standard tyres, 11.5/80 x 15.3
Tipping angle, 50 degrees
Z050
Max weight, 6,400 kg
Dimensions box, 340 x 180 x 40 cm
Standard tyres, 11.5/80 x 15.3
Tipping angle, 50 degrees
Z080
Max weight, 10,300 kg
Dimensions box, 450 x 220 x 60 cm
Standard tyres, 550/45 x 22.5
Tipping angle, 50 degrees
Z100
Max weight, 12,700 kg
Dimensions box, 450 x 220 x 60 cm
Standard tyres, 550/45 x 22.5
Tipping angle, 50 degrees
Applications
Farm material transport:
For regular movement and tipping of materials where frequent displacement is required.
Gardening and land company operations:
Suitable for transporting branches, grass and weeds in large gardens and land maintenance work.
Sand displacement and mixed-site work:
Used for transferring sand, including applications where the trailer can be attached to small excavators.
Sports field and plot maintenance:
Suitable for tasks linked to maintaining sports fields and other plots.
Plantation transport and specialist uses:
Used internationally on plantations for carrying pineapples and waste. Also used behind cranes as a bucket carrier.
